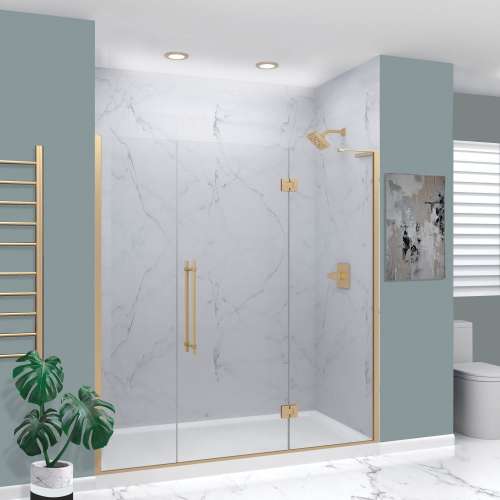

This Transolid Elizabeth shower door has a frameless swing shower door with a fixed panel that is every bit as elegant as it is functional. TruMotion and additional height set this Elizabeth door apart from its competition. This unique TruMotion slow closing hinge features an adjustable 3 position timing, enabling the user to adjust the closure from either slow or fast paced closing without having to worry about a slamming door. The side wall profiles allow 1/2” out-of-plumb adjustment on either side, making it possible for uneven walls to still hold a beautiful shower door. Transolid exclusive Nano ClearCoat water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. With clean lines, modern accents and an upscale look, the Elizabeth collection adds timeless style to any bathroom space.
- Exclusive TruMotion mechanism with 3 different speed positions on the hinge adjust closing speed of the door
- 73.5 - 74.5-in W x 76-in H wall mounted single panel swing shower door for an alcove (3-wall) shower
- Premium 3/8 in (10 mm) tempered clear Nano clear coat covered glass, tested and certified to ANSI Z97.1 standard
- Easily accommodate uneven walls with an out-of-plumb adjustability of up to 1/2 in. on both sides
- Stylish Champagne Bronze hardware is constructed of 304 stainless steel
- Reversible for a right or left door opening to fit your specific layout
- Transolid Nano easy clean glass coating helps to keep your glass sleek and clean. This hydrophobic coating repels water, keeping your shower door squeaky clean and visually appealing
- To clean, use a wet cloth and soft liquid cleaner
- Never use abrasive cleaners such as acetone, chlorine or bleach, scrapers, metallic brushes or any object that can graze or tarnish surfaces
- This door requires a minimum 1-in of flat threshold space for installation
- All reference measurements should be based on a finished opening
- Measure finished opening at bottom and top of the door, use the smaller number as the finished opening size - this door does not have any adjustment for overall width
- Professional installation recommended Limited Lifetime Residential
- Warranty, one year commercial warranty.
Guides & Documents | Spec Sheet Installation PDF |
ADA | No |
Brand | Transolid |
Frame Type | Frameless |
Glass Thickness (mm) | 10.00 |
Maximum Width (in) | 74.50 |
Minimum Width (in) | 73.50 |
Mounting Style | Hinged Door with 2 Fixed Panels |
Out Of Plumb Adjustment | 1/2-in on each side |
Water-Repellent Coating | Yes |
Product Type | Shower Door |
Collection | Elizabeth |
Color | Champagne Bronze |
Width (in) | 74.50 |
Length (in) | 0.39 |
Height (in) | 76.00 |
Material | Glass, 304 Stainless Steel |
Color/Finish Family | Champagne Bronze |
Weight (lb) | 258.20 |
Warranty | Limited Lifetime Residential Warranty, One Year Commercial Warranty |
Door Adjustment | Yes |
Door Color/Finish | Champagne Bronze |
Door Frame | No |
Door Height (in) | 76.00 |
Door Opening Height (in) | 76.00 |
Door Type | Hinged |
Glass Pattern | Clear |
Glass Style | Clear |
Glass Thickness (in) | 0.39 |
Handle Type | Bella Knurled |
Hardware Included | Frame and installation kits (see installation sheet) |
Maximum Door Width (in) | 25.00 |
Maximum Opening Width (in) | 24.50 |
Minimum Door Access (in) | 24.00 |
Minimum Door Width (in) | 73.50 |
Minimum Opening Width (in) | 24.00 |
Series | Elizabeth |
Slow Close | Yes |
Towel Bar | No |
